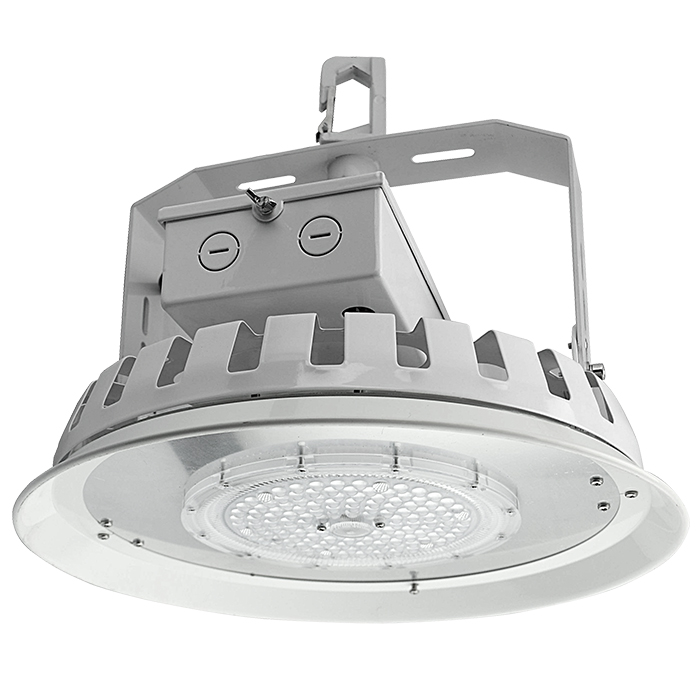

HBR Round High Bay 16-inch
4000K / 1-10V / Damp Location

Item Code 7696
Code LED-FX16HBR100/90/840
Wattages 100W
Lumens 14,461
CCT 4000K
Equiv.Wattages 400W



SKU: LED-FX16HBR100/90/840 Categories: ,

Description

Features:


• Damp Location
• ETL Listed
• Color Temp: 4000K
• Voltage: 120-277V
• Power Factor: >0.9
• Surge Protection: 4KV
• Beam Angle: 90°
• Dimmable: 1-10V
• CRI: >80
• Operating Temperature: – 22°F – 122°F
• Designed for operation in commercial warehouses
• Lightweight housing for easy installation
• Diameter: 16”
• Built-in snap-lock hook
• Material: Aluminum construction
• 5 Year Warranty
• Optional for Purchase: Motion Sensor, Emergency Driver

Additional information

Weight 8.90 lbs
Dimensions 13.77 × 13.77 × 7.44 in
Wattage

CCT

CRI

Voltage

Beam Angle

Color

Dimmable

IP Rating

Photocell

Listings

Warranty

Stock

Download

TECH SHEET SPEC SHEET INSTALLATION .IES FILE BROCHURE

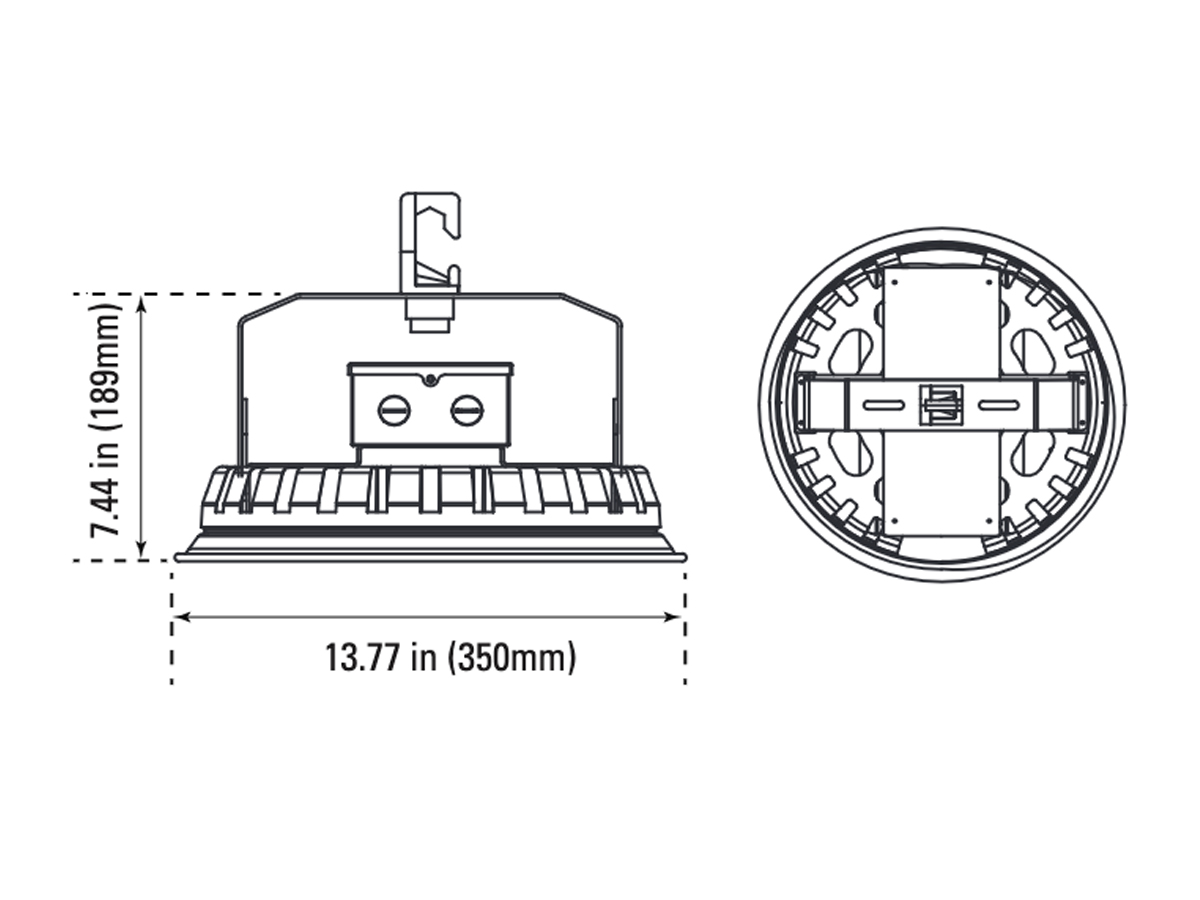

Dimensions

Weight:8.90-lbs

Accessories

Item Code
Order Code
Description
Data Spec
K150148
PLT/HBR/MC31
Microwave Sensor for Round High Bay
-
K7333160
FXHBR-BAEM-MT
LED Driver 120-277V for Round High Bay
-
