HBR Round High Bay (11-inch)
5000K / 0-10V / IP66 Rated

Item Code 9469
Code FX11HBR100/90/850/WH/IP66
Wattages 100W
Lumens 15,321
CCT 5000K
Equiv.Wattages 400W
Color White



SKU: FX11HBR100/90/850/WH/IP66 Categories: ,

Description

Features:


• DLC Premium
• IP66 Rated
• ETL / ETL Sanitation Listed
• Wattage: 100W
• Color Temp: 5000K
• Voltage: 120-277V
• Power Factor: >0.9
• Surge Protection: 4KV
• Beam Angle: 90°
• Dimmable: 0-10V (only with sensor)
• CRI: >80
• Operating Temperature: – 22°F – 122°F
• Diameter: 11″
• Corrosion-resistant powder coating
• Hook included and 6-feet SO cord for easy installation
• Material: Die-cast aluminum
• 5-Year Warranty
• Available beam angle: 120° as an optional accessory
• Optional for Purchase: Refractor, Lens, Sensor Remote Control, Pendant Mount

Additional information

Weight 5.95 lbs
Dimensions 11.40 × 11.40 × 5.70 in
Wattage

,

CCT

CRI

Voltage

Beam Angle

Color

Dimmable

IP Rating

Photocell

Sensor

Listings

, ,

Warranty

Stock

Download

TECH SHEET SPEC SHEET  INSTALLATION .IES FILE with Refractor BROCHURE

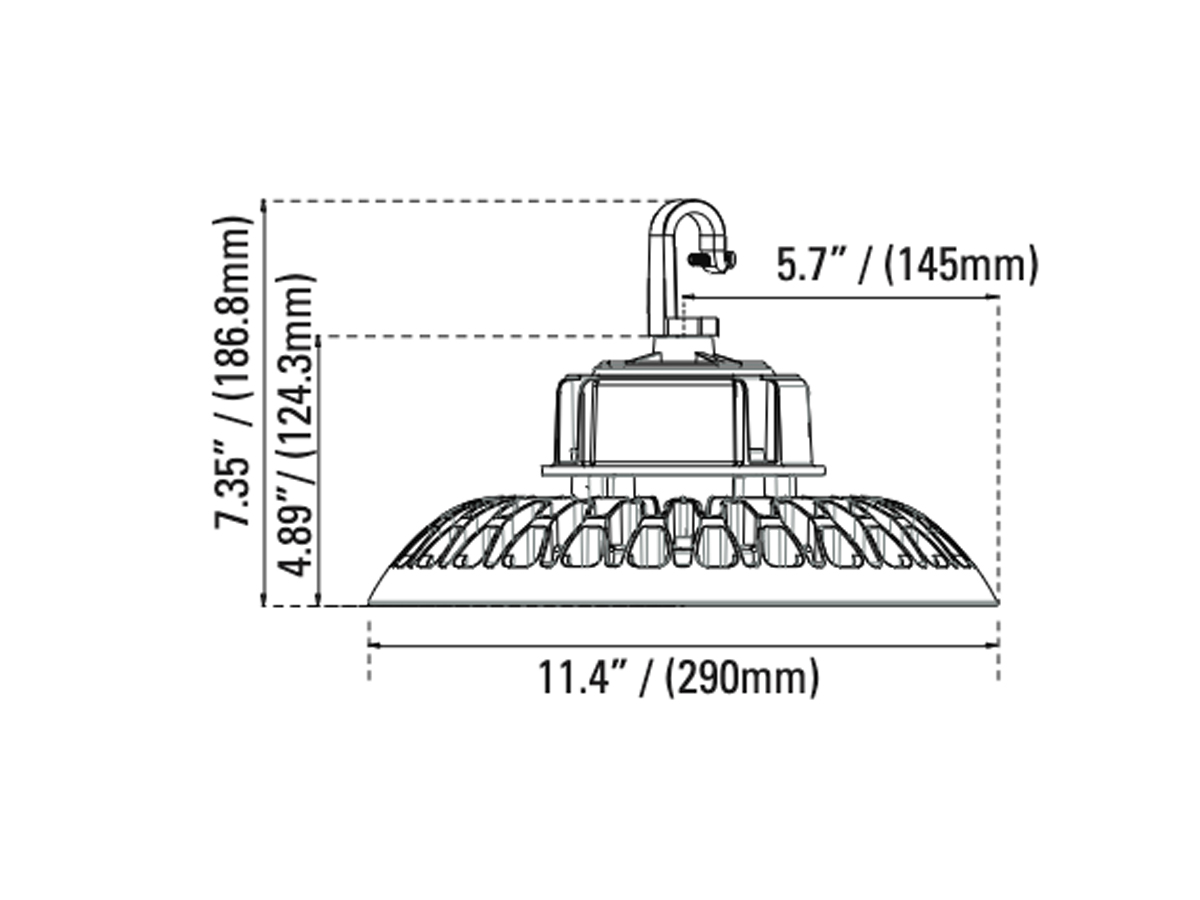

Dimensions

Weight:5.95-lbs

Accessories

Item Code
Order Code
Description
Data Spec
P10320
LENS-11HBR-120D-IP66
120° Lens for 9469
-
P10321
LENS-13HBR-120D-IP66
120° Lens for 9470
-
P10433
LENS-15HBR-120D-IP66
120° Lens for 9555 & 7165
-
P10376
CVR-11HBR100-PC
High Bay PC Reflector for 9469
P10377
CVR-13HBR150-PC
High Bay PC Reflector for 9470
P10434
CVR-15HBR200-PC
High Bay PC Reflector for 9555 & 7165
P10319
SEN-HD06VCRH
Remote Programmable Microwave Motion Sensor 0-10V
-
P10323
SEN-HD05R
Remote Programmer for P10319
-
P10191
ADP-1/2-3/4NPT
1/2" to 3/4" NPT Adaptor for Pendant Mount
-
P10371
SEN-BRI619
(Recommended Height up to 40-ft)
Remote/Dipswitch Programmable
PIR Motion Sensor 0-10V Bi-Level
Internal 12V-24V 2X Area Lens
-
P10316
SEN-BRI-RC100
Remote Programmer for P10371
-
