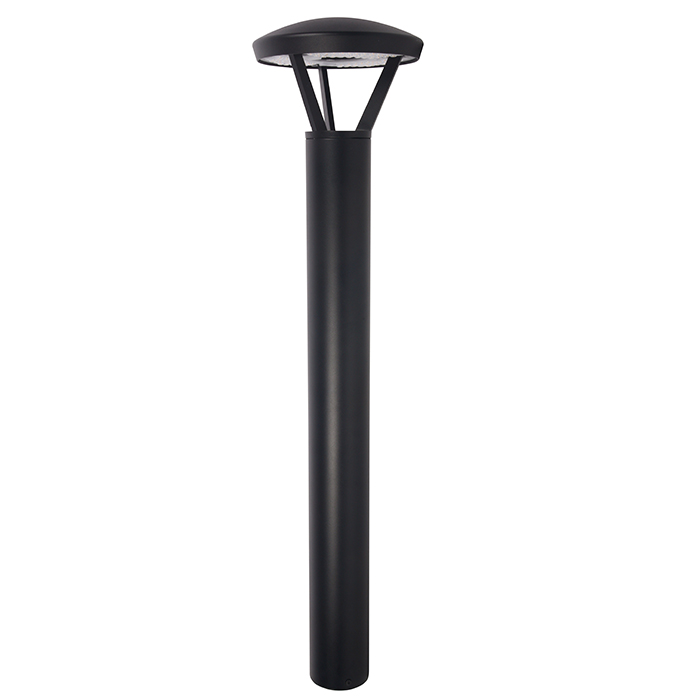

Pathway Landscape Area Light (PWY)
10/15/18W – CCT3 – [10.5″X42″]

Item Code 9642
Code FX10PWY18SW/42/8CCT3/BK/T5/347
Wattages 10/15/18W
Lumens 1,474
1,800
2,305
CCT CCT3 (30/40/50K)
Equiv.Wattages 100W
Color Black



SKU: FX10PWY18SW/42/8CCT3/BK/T5/347 Categories: ,

Description

Features:


• DLC Premium Qualified
• IP65 Rated
• ETL, cETL Listed
• Wattage & Color Selectable


• Wattages: 10/15/18W
• Color Temp: 3CCT (30/40/50K)
• Voltage: 120-347V
• Surge Protection: 10KV
• Dimmable: 0-10V
• CRI>80
• Operating Temperature: -40°F – 122°F
• Beam Angle: Type 5
• Material: Die Cast Aluminum
• Finish: Corrosion-resistant powder coating
• Color: Black
• Warranty: 5 Year
• Built In Photocell Sensor Included
• Optional for Purchase: Emergency Driver, Motion Sensor, Bluetooth Control

Additional information

Weight 10.65 lbs
Dimensions 10 × 10 × 42.00 in
Wattage

,

CCT

CRI

Voltage

Color

Dimmable

Beam Angle

IP Rating

Photocell

Sensor

Listings

,

Warranty

Stock

Download

TECH SHEET SPEC SHEET Installation for Fixture Installation EM Installation Sensor .IES FILE

Dimensions

Weight:10.65-lbs

Accessories

Item Code
Order Code
Description
Data Spec
P10519 +
P10522
REC-Z10-BK
REC-ANT-6-Z10
Motion Sensor Set
-
P10519 +
P10520
REC-Z10-BK
REC-ANT-5-Z10-PC
Photocell Sensor Set
-
P10519 +
P10488
REC-Z10-BK
CTL-MW-PSC-ZKV-WCM-100-BLE-SR
Bluetooth Control Set
-
P10316
SEN-BRI-RC100
Remote Control
-
